★FY-G3 Ultra 3-Axis Brushless Gimbal Aircraft for Gopro3 10700040

Product image 1
Product image 2
Product image 3
Product image 4

★FY-G3 Ultra 3-Axis Brushless Gimbal Aircraft for Gopro3 10700040

Specification

Specification

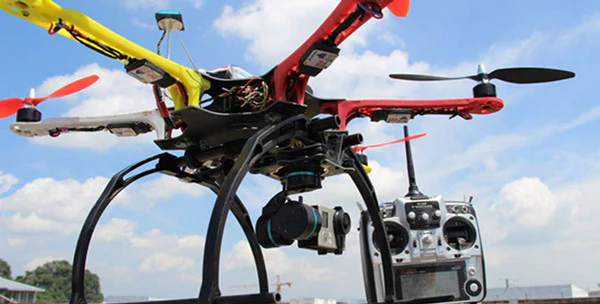

FY-G3 Ultra 3 Axis Brushless Gimbal( for aircraft ) suitable for GoPro3, GoPro3+ or camera with similar size. Can be easily mounted in fixed wing, multirotor, helicopter for aerial photography, and can work independently only need power supply.
You can assemble the gimbal properly according to the drawing, and then install the video camera on it. The camera mount currently is only suitable for GOPRO3, for other kinds of cameras, you can design the mount by yourself or concern Feiyu Technology. There is no need to set up and adjust the parameter. For the first use, power on the Gimbal, and then keep it static for a while, after its reset, the gimbal will be in a level position automatically. Then you can use it normally.


Description:
Items   Min   Standard Max Remarks
Working Voltage  9.0V   12.0V 17.0V
Static Attitude Tracking Accuracy  0.01 0.02 0.05 Gimbal in static mode
Motion Attitude Tracking Accuracy  0.1 0.2 0.5 Motor overload<2G
Overload Current Protection    800mA
Pitch Angle  -150 (Down) 0 (Horizontal) +150(Up)
Forward installation
Roll Angle  -45 0(Horizontal) +45
Heading Angle -150(Left)   +150 Inverted installation
Heading Angle   -50   +50 Forward installation
Pitch Following Rate  2°/Sec   25°/Sec
Heading Following Rate  3°/Sec   75°/Sec
Weight  186g (Without shock mount& camera )


Indicator
LED Status Function Explanation
Single Flashes Heading follow mode
Double Flashes Heading and pitch follow mode
On Constantly Heading, pitch and roll are all locked

Features:
When connect to RC receiver it can switch in 3 working modes, also can control the heading and pitch via the RC receiver.
1. Heading Follow Mode: Camera Pitch and Roll angles remain constant, heading follows the nose position,pitch can be       control by RC .
2. Heading And Pitch Follow Mode: Camera Roll angle remains constant. Heading follow the nose position and Pitch follow the elevation of the aircreft.
3. Heading Lock Mode: Heading, Pitch and Roll are all locked to point at one position.Heading and pitch can be controlled by RC .

Initialize The FY-G3 Ultra Gimbal
FY-G3 Ultra Gimbal Initialization Instructions:
Keep the gimbal motionless, then power on, hold the gimbal steady and it will initialize automatically.
Once complete the camera will be level with the horizon in pitch and roll angles and it will be in Heading Follow Mode.

In addition to initial power on,the FY-G3 Ultra Gimbal needs to be initialized whenever the following situations appear:
1. After power on, the angle of pitch is not level with the horizon line.
2. After power on, the angle of roll is not parallel with the horizon line.
3. When the gimbal is in heading lock, the angle of heading moves frequently (heading is not stationary)

Note:
GoPro Hero 3 or Hero 3+ camera must be installed before supplying power to the Gimbal.
Failure to do so will result in damage to the gimbal motors.


Package included:

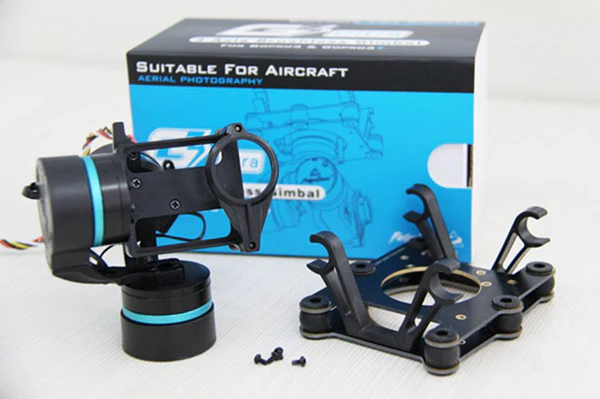

1 x FY-G3 Ultra 3-Axis Brushless Gimbal Aircraft Version
$142.30

Original: $406.56

-65%
★FY-G3 Ultra 3-Axis Brushless Gimbal Aircraft for Gopro3 10700040—

$406.56

$142.30

Product Information

Shipping & Returns

Description

Specification

Specification



FY-G3 Ultra 3 Axis Brushless Gimbal( for aircraft ) suitable for GoPro3, GoPro3+ or camera with similar size. Can be easily mounted in fixed wing, multirotor, helicopter for aerial photography, and can work independently only need power supply.
You can assemble the gimbal properly according to the drawing, and then install the video camera on it. The camera mount currently is only suitable for GOPRO3, for other kinds of cameras, you can design the mount by yourself or concern Feiyu Technology. There is no need to set up and adjust the parameter. For the first use, power on the Gimbal, and then keep it static for a while, after its reset, the gimbal will be in a level position automatically. Then you can use it normally.


Description:
Items   Min   Standard Max Remarks
Working Voltage  9.0V   12.0V 17.0V
Static Attitude Tracking Accuracy  0.01 0.02 0.05 Gimbal in static mode
Motion Attitude Tracking Accuracy  0.1 0.2 0.5 Motor overload<2G
Overload Current Protection    800mA
Pitch Angle  -150 (Down) 0 (Horizontal) +150(Up)
Forward installation
Roll Angle  -45 0(Horizontal) +45
Heading Angle -150(Left)   +150 Inverted installation
Heading Angle   -50   +50 Forward installation
Pitch Following Rate  2°/Sec   25°/Sec
Heading Following Rate  3°/Sec   75°/Sec
Weight  186g (Without shock mount& camera )


Indicator
LED Status Function Explanation
Single Flashes Heading follow mode
Double Flashes Heading and pitch follow mode
On Constantly Heading, pitch and roll are all locked

Features:
When connect to RC receiver it can switch in 3 working modes, also can control the heading and pitch via the RC receiver.
1. Heading Follow Mode: Camera Pitch and Roll angles remain constant, heading follows the nose position,pitch can be       control by RC .
2. Heading And Pitch Follow Mode: Camera Roll angle remains constant. Heading follow the nose position and Pitch follow the elevation of the aircreft.
3. Heading Lock Mode: Heading, Pitch and Roll are all locked to point at one position.Heading and pitch can be controlled by RC .

Initialize The FY-G3 Ultra Gimbal
FY-G3 Ultra Gimbal Initialization Instructions:
Keep the gimbal motionless, then power on, hold the gimbal steady and it will initialize automatically.
Once complete the camera will be level with the horizon in pitch and roll angles and it will be in Heading Follow Mode.

In addition to initial power on,the FY-G3 Ultra Gimbal needs to be initialized whenever the following situations appear:
1. After power on, the angle of pitch is not level with the horizon line.
2. After power on, the angle of roll is not parallel with the horizon line.
3. When the gimbal is in heading lock, the angle of heading moves frequently (heading is not stationary)

Note:
GoPro Hero 3 or Hero 3+ camera must be installed before supplying power to the Gimbal.
Failure to do so will result in damage to the gimbal motors.


Package included:
1 x FY-G3 Ultra 3-Axis Brushless Gimbal Aircraft Version
