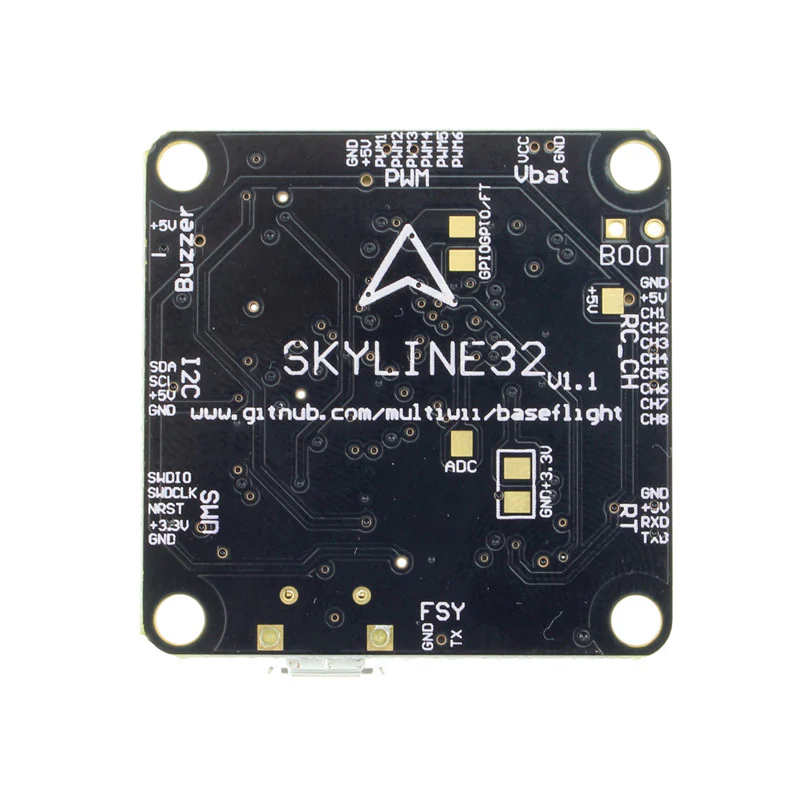

★EMAX Skyline32 Flight Controller (Acro V1.2)
V1.2 Version:
- Support OSD
- Support Spektrum Satellite receiver
- Support OLED
- Add 3.3V & 5V Soldering Pad at back.
The skyline32 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Selling points:
- Cleanflight & Baseflight supported. (SKYLINE32 is loaded with Baseflight-Configurator)
- Unique wire-to-board connectors, wiring easier!
- Thin and light design, reducing overall weight saving mounting space!
- With compass sensor, no deviation!
- Barometer, Black box included(Advanced V2 Version)
- Adapting high quality electronic components & high precision SMT.
Features
- 32-bit ARM micro processor running at 3.3V / 72MHZ.
- With gyro, compass, extended reservation position for accelerometer, barometer.
- Manual mode, Angle mode, Horizon mode, heading hold mode, head-free mode, Altitude hold mode (this mode is available in advanced version)
- Support Quad-,Tri-,Hex- ,various multirotors.
- Flexible RC input: standard, CPPM (PPM SUM)
- Battery voltage monitoring and low alarm.
- Micro-USB: Flashing firmware & adjusting parameter
- Parameters adjustment interface: Baseflight-Configuration.
- GPS position hold / “Go home” function(GPS Optional).
Specification:
Dimension: 35mm x 35 mm x 5 mm (30.5mm Mounting)
Weight: 4.8g (W/O wires)
Included:
1x SKYLINE32 Acro V1.2
2x RC breakout cable
Note: SKYLINE32 hardware is compatible with NAZE32 firmware, including cleanflight, baseflight. Below are the links to the source codes:
https://github.com/cleanflight/cleanflighthttps://github.com/multiwii/baseflightSKYLINE32 is loaded with baseflight and Baseflight-Configurator GUI. This manual is a baseflight Setup Tuning Guide for SKYLINE32.
If you are using cleanflight firmware, please refer to the below link to download and install cleanflight Configurator:
https://chrome.google.com/webstore/search/cleanflight?utm_source=chrome-ntp-iconNote: with firmware and configuration based on “MultiWii” software, the processor used is not Atmel AVR, and can not be compiled via Arduino or other AVR tools.
http://code.google.com/p/afrodevices/wiki/STM32DevelopmentProduct Information
