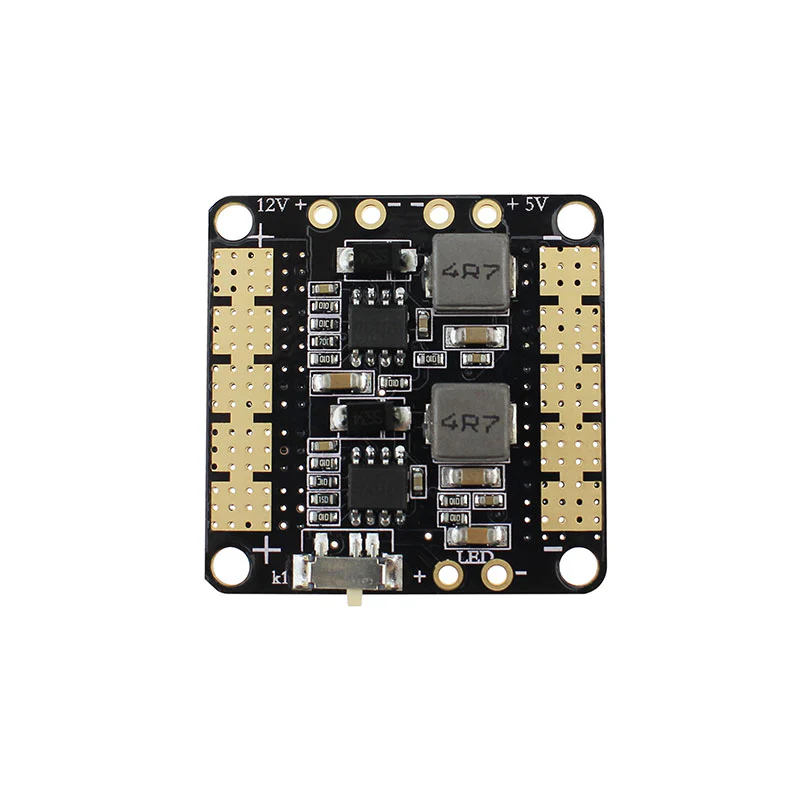

EMAX Power Distribution Board 0512 5V-12V

V2 version is here:https://emaxmodel.com/emax-power-distribution-board-0512-5v-12v-version2.html

This power distribution board features with 2 BEC outputs. With extra-thick copper foil, ENIG surface, it supports a current of up to 100A. 12V BEC provides power for brushless gimbal, 5.8G FPV transmitter or FPV camera, while 5V BEC provides power for flight controller, GoPro etc.



 Features:



• Product name：PDB0512
• Input voltage: 2-6S Lipo
• 2 BEC outputs: 5V & 12V
• Output current: 2-3A every output
• LED output: LED output goes through K1 switch and connects to power supply. Please pay attention to the input voltage of the LED while connecting a LED.
• Dimension: 35*35mm
• Net weight: 6g
