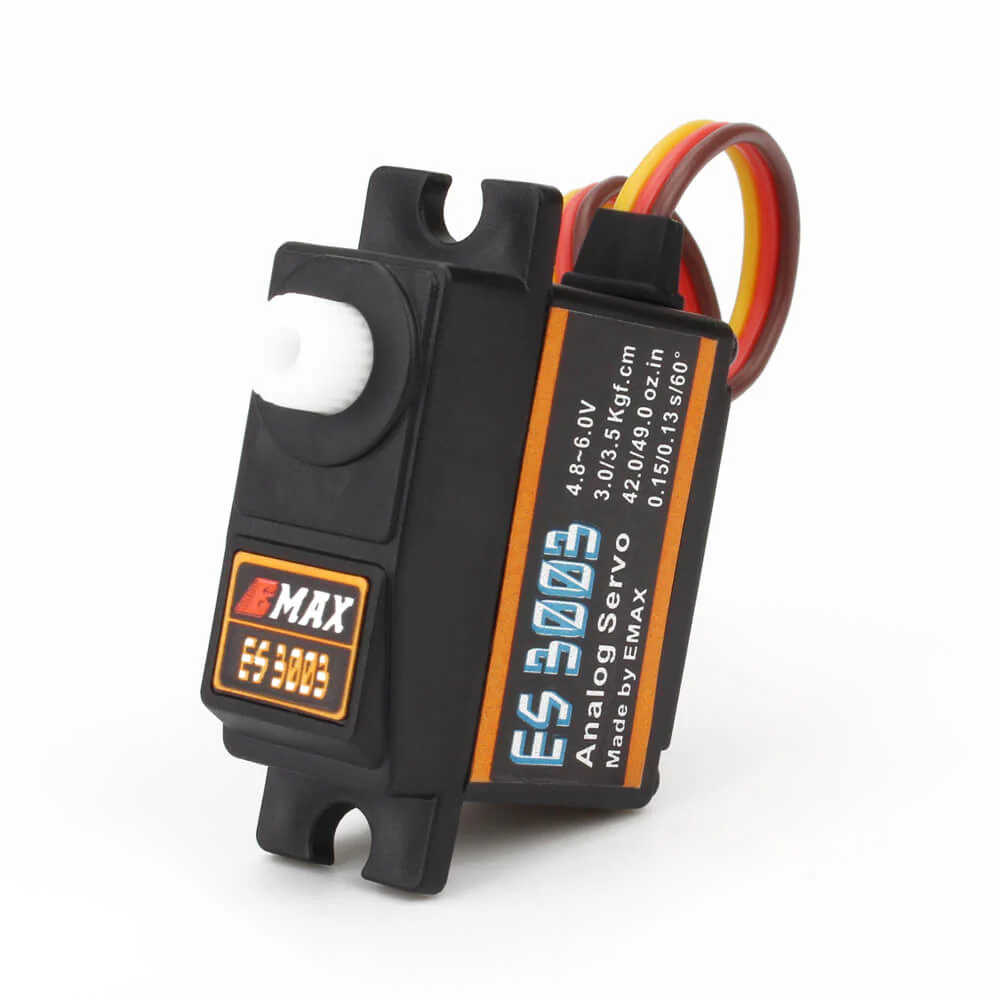

EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo For RC Airplane

EMAX ES3003 17g 3.5kg 0.13sec Plastic Gear Analog Servo For RC Airplane ES3103 upgrade



Specifications:

Brand Name		EMAX
Item Name		ES3003
Operating Voltage		4.8V - 6.0V
STD Direction		Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Stall Torque	4.8V	3kg.cm Max
Operating Speed	4.8V	0.15 sec/60° at no load
Stall Torque	6.0V	3.5kg.cm Max
Operating Speed	6.0V	0.13 sec/60° at no load
Size		28.45x13.00x31.10mm
Weight		17g
Plug Available		FUT;JR
Flower Head		23T
Maximum Travel		145°±10° (700-2300μ sec)
Others		Bearing; Plastic; Analog

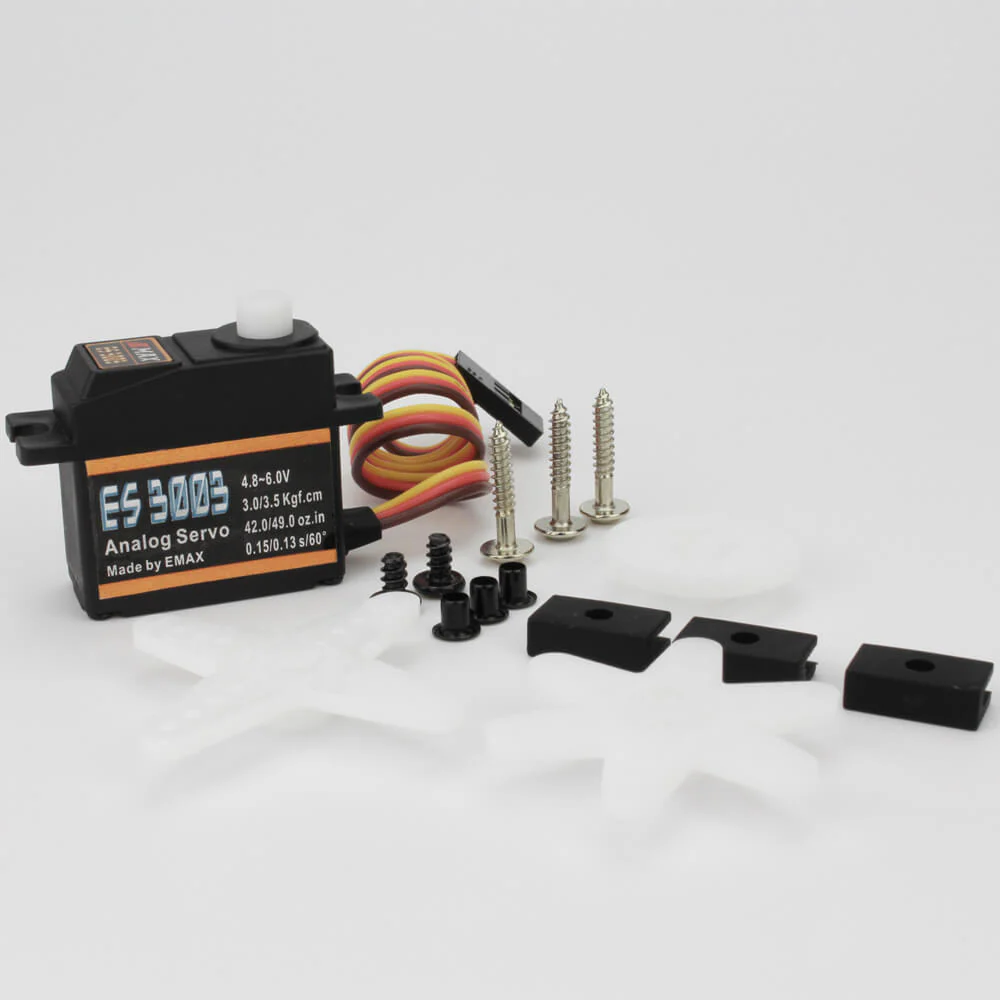

Package Included:
1x EMAX ES3003 17g Servo
