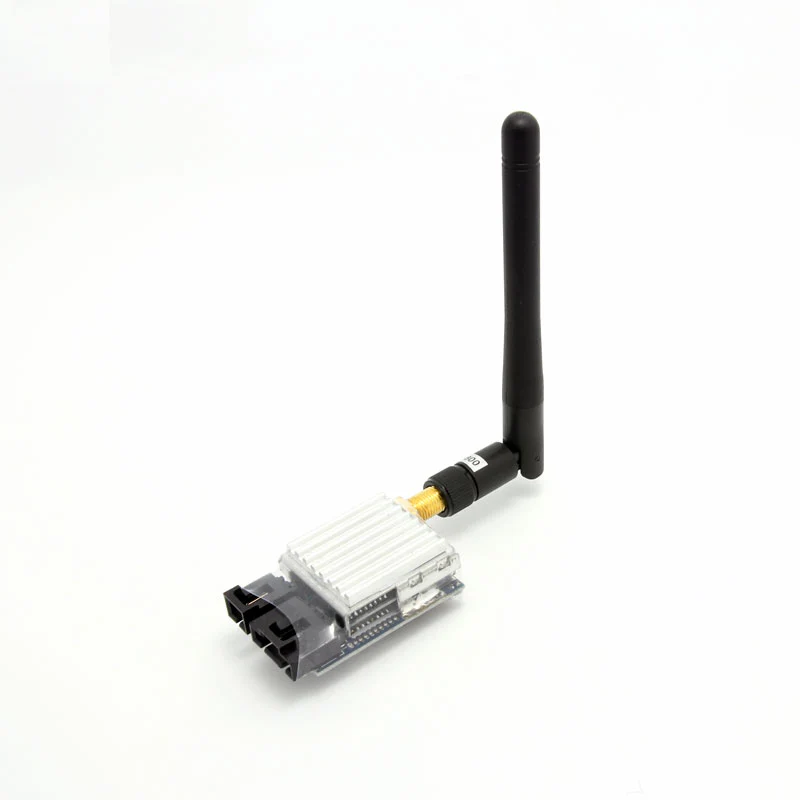

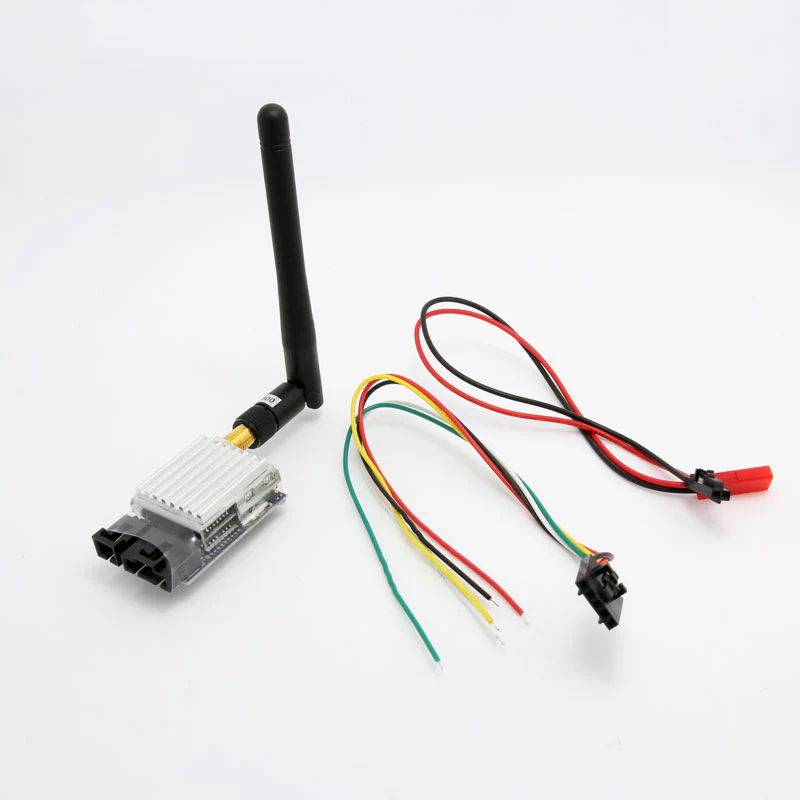

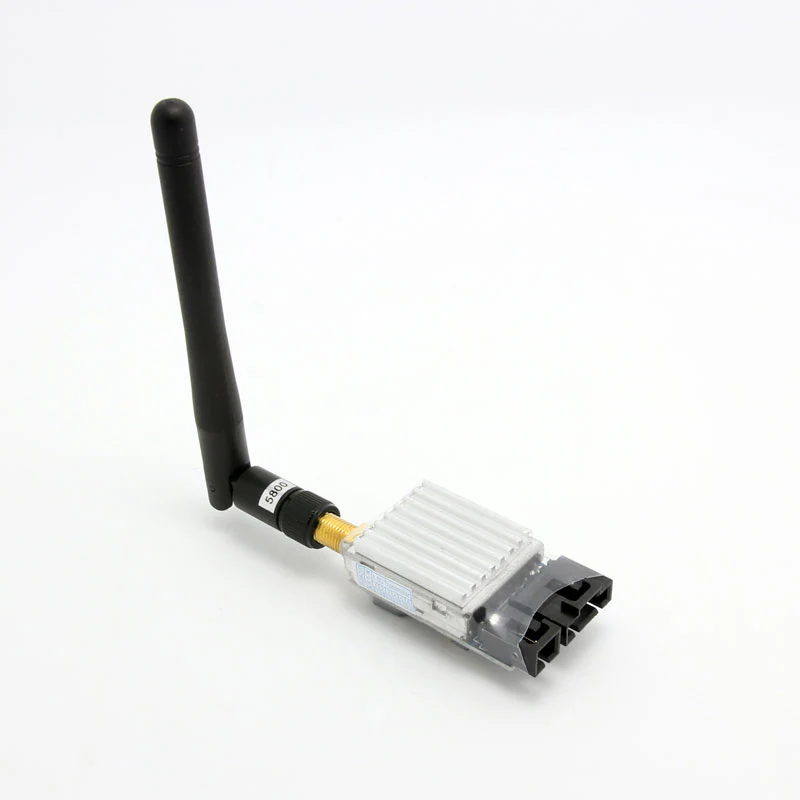

Boscam 5.8Ghz 8CH 200mW FPV Transmitter
Boscam 5.8Ghz 200mW transmitter. This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 1km+. This unit a Includes built-in microphone.
Specifications:
- Video Format: Pal/NTSC
- Output impedance: 50Ohm
- Output power: 21~23dBm
- Channels: 8
- Transmitter operating voltage: 7~15VDC / 150mA
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75Ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K/Ohm
- Weight: 25g

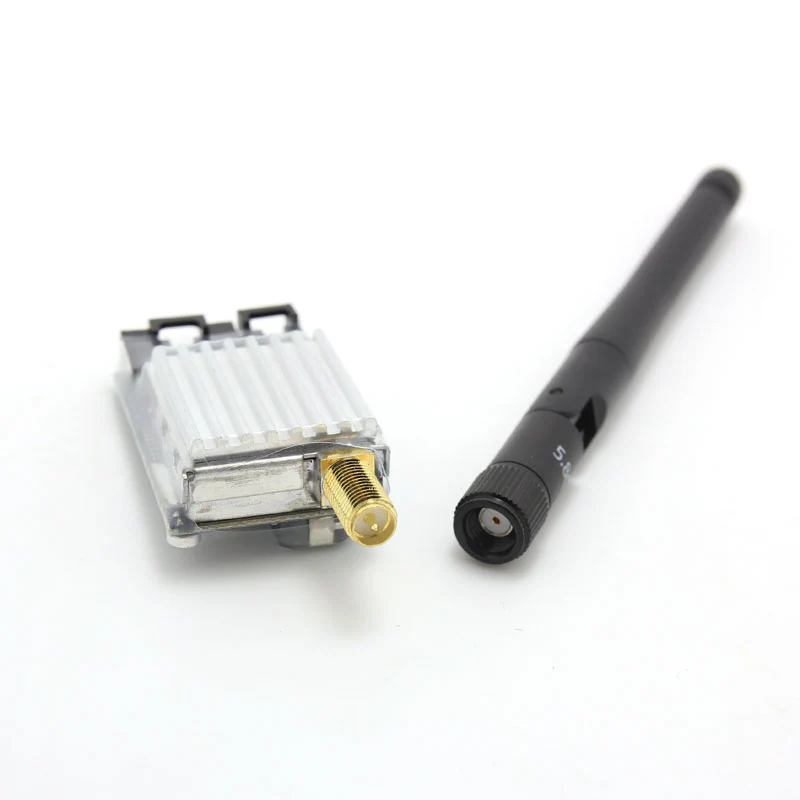

- Antenna connector: RP-SMA
- Dimensions: 55x26x17mm
Channels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
