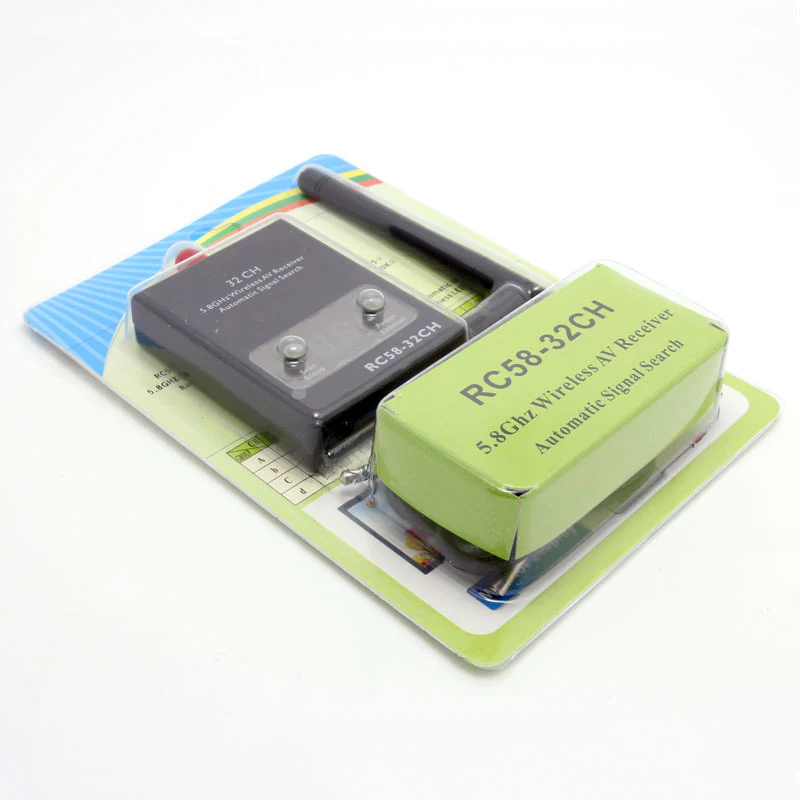

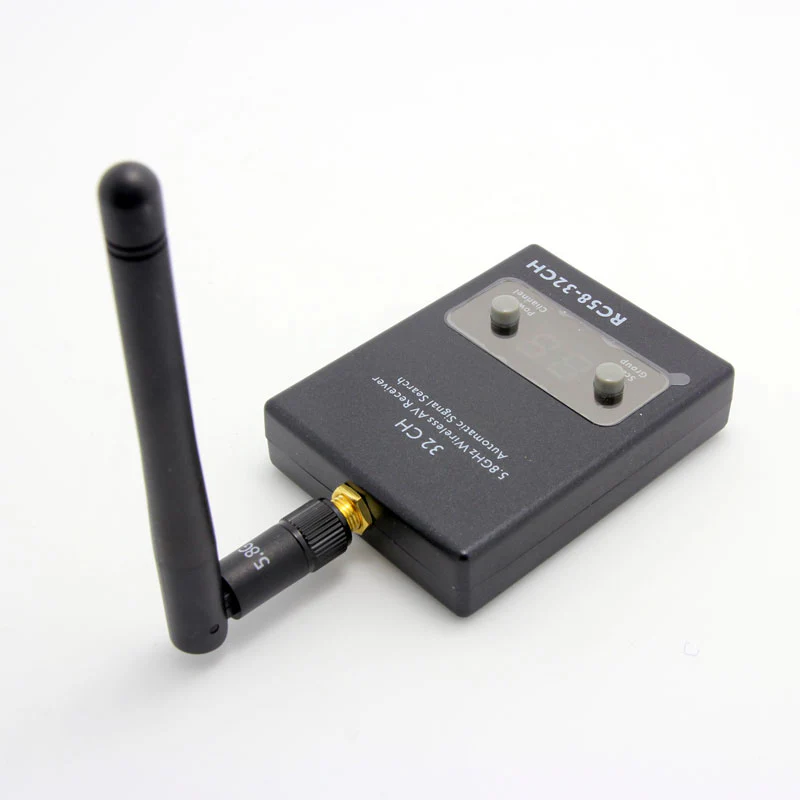

Boscam 5.8G RC58-32CH FPV Receiver FPV

Features:

• 32 Channel
• A key to automatic singnal search
• High brightness LED display

Specification:

•  Working frequency: ISM 5.8GHZ
•  Available channel: 32CH
•  Receiver Sensitivity: <=-92dBm
•  Power supply: DC 7-12V
•  Comsumption current: 200mA/MAX

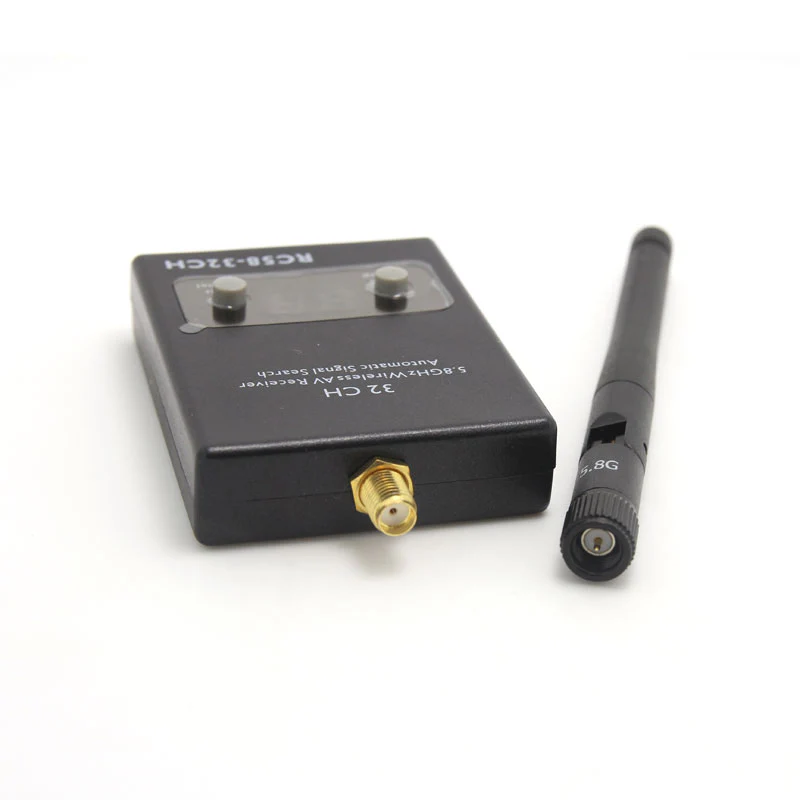

• Antenna connection: SMA
•  Antenna impedance: 50Ω
•  Antenna gain: 3dB
•  Video output level: 1.0Vp-p Type/75Ω
•  Audio output level: 1.0Vp-p Type/10KΩ
•  Video system: AUTO
•  Dimension: 60*50*15mm(L*W*H)
•  Weight: 65g



Wireless transmitter Channel Frequency(MHz)

Channel range CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
FR1 or (A) 5865 5845 5825 5805 5785 5765 5745 5725
FR2 or (B) 5733 5752 5771 5790 5809 5828 5847 5866
FR3 or (E) 5705 5685 5665 5645 5885 5905 5925 5945
FR4 or (F) 5740 5760 5780 5800 5820 5840 5860 5880
