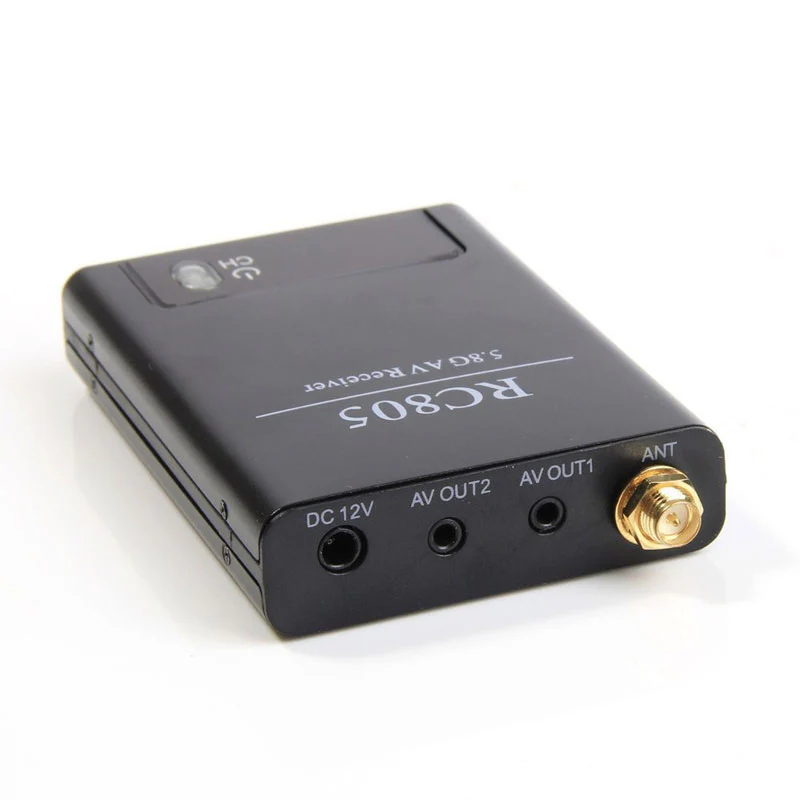

Boscam 5.8G 8CH RC805 FPV Receiver

Boscam has forged a reputation of quality and reliability, and has been tested and developed by FPV pilots for FPV pilots. The RC805, 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.



Specifications:

• Receiving sensitivity: < -90dBm
• Receiving frequency: ISM 5.8GHz 8CH
• Antenna port: 50ohm RP-SMA
• Antenna: Gain: 2dBi
• Power supply: DC12V 220mA
• Video output level: 1Vp-p @ 75ohm
• Audio output level: 1Vp-p @ 10Kohm
• Dimensions: 72.5x54.2x15.5mm
• Weight: 52g (w/antenna)

Channels:

5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
