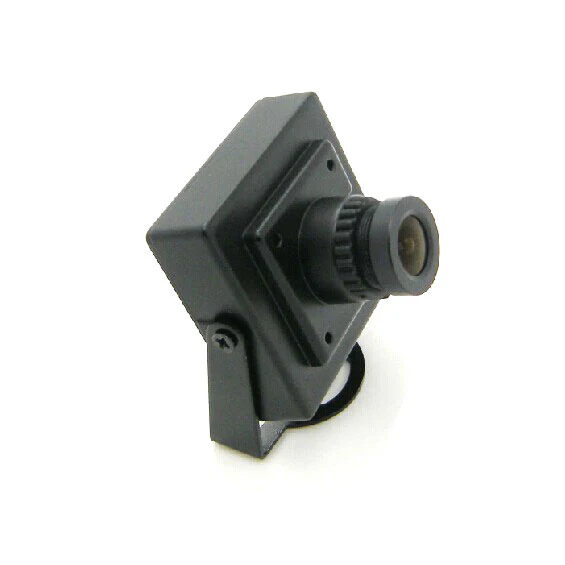

★800TVL High Resolution HD FPV Various Focus Board FPV Camera

Product image 1

★800TVL High Resolution HD FPV Various Focus Board FPV Camera

Specifications:
- Size:: 35*35*45mm
- Resolution: PAL: 720H x 576V
- Effective resolution: PAL: 976H×582V   NTSC:  976Hx494V
- System:PAL/NTSC
- Horizontal resolution:800TVL
- Min lumen: 0.1LUX/F1.2
- SNR: ≥48dB
- Video output 1.0Vp-p/75Ω
- auto gain: 0.25/0.50/0.75/1.00 max 55dB
- Gamma: 0.45/1.0
- Lens: 3.6MM/2.5mm/2.8mm optional
- Voltage: DC 6-15V(2-3s LIPO)
- Current: 20MA
- Tep: -20℃--60℃

Select Camera System
From $31.40
★800TVL High Resolution HD FPV Various Focus Board FPV Camera—
$31.40

Product Information

Shipping & Returns

Description

Specifications:
- Size:: 35*35*45mm
- Resolution: PAL: 720H x 576V
- Effective resolution: PAL: 976H×582V   NTSC:  976Hx494V
- System:PAL/NTSC
- Horizontal resolution:800TVL
- Min lumen: 0.1LUX/F1.2
- SNR: ≥48dB
- Video output 1.0Vp-p/75Ω
- auto gain: 0.25/0.50/0.75/1.00 max 55dB
- Gamma: 0.45/1.0
- Lens: 3.6MM/2.5mm/2.8mm optional
- Voltage: DC 6-15V(2-3s LIPO)
- Current: 20MA
- Tep: -20℃--60℃
